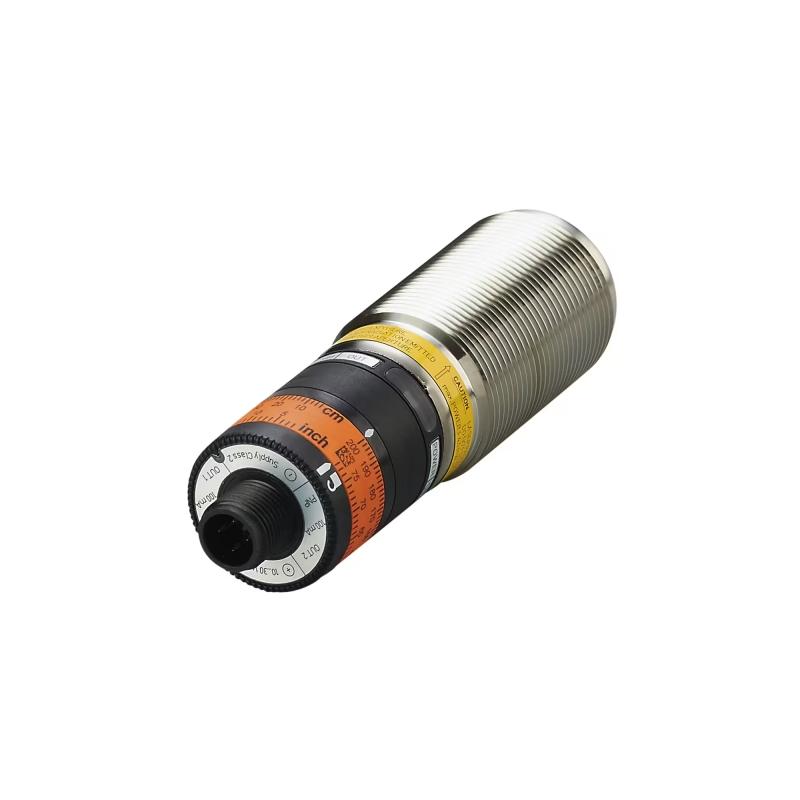

IFM OID200 photoelectric distance sensor utilizes the Time-of-Flight (ToF) measurement principle. It offers a measuring range of 0.03–2 m, features reliable background suppression, and is capable of detecting objects regardless of their color. The sensor is equipped with a rotatable, lockable adjustment ring and supports IO-Link communication, making it well-suited for factory automation applications.
Item NO.:
OID200Order(MOQ):
1Market Price:
$190Shipping Port:
hkLead Time：
3-5daysWeight：
207Product Overview
IFM OID200 (OIDLCPKG/US) is a photoelectric distance sensor based on the Time-of-Flight (ToF) measurement principle. It features an exceptionally long sensing range, reliable background suppression, and the ability to detect objects regardless of their color, making it well-suited for industrial and factory automation applications.
Key Features
Technical Specifications
| Parameter | Specification |
| Measuring range | 0.03…2 m |
| Light type | Red laser, wavelength 650 nm |
| Laser protection class | 2 |
| Electrical Design | PNP |
| Operating Voltage | 10…30 V DC |
| Current Consumption | 75 mA (24 V) |
| Digital Outputs | 2, complementary (NO/NC) |
| Maximum Current Load Per Output | 100 mA |
FAQ
Q1: Is the OID200 affected by the color or glossiness of an object?
A: This sensor features color-independent detection and reliable background suppression, making it suitable for detecting objects with glossy surfaces or those situated against complex backgrounds. It is commonly used for positioning, level monitoring, and collision avoidance.
Q2: What are the mounting dimensions and protection rating of the OID200?
A: It features a stainless steel housing with dimensions of M30 x 1.5 / L = 100 mm. It has an IP65/IP67 protection rating and operates within an ambient temperature range of -25 to 60 °C. At a distance of 2 meters, the maximum laser spot diameter is approximately 5 mm.
Q3: What is the laser safety class of the OID200, and what precautions should be taken during use?
A: The sensor is classified as a Class 2 laser device. During installation and operation, ensure that the laser beam is not directed into human eyes, and follow the installation and commissioning instructions provided in the manual. If you are looking to replace another photoelectric sensor, please provide details regarding the required detection range, object color/surface characteristics, and output specifications; we would be happy to assist you with selecting the appropriate model.
