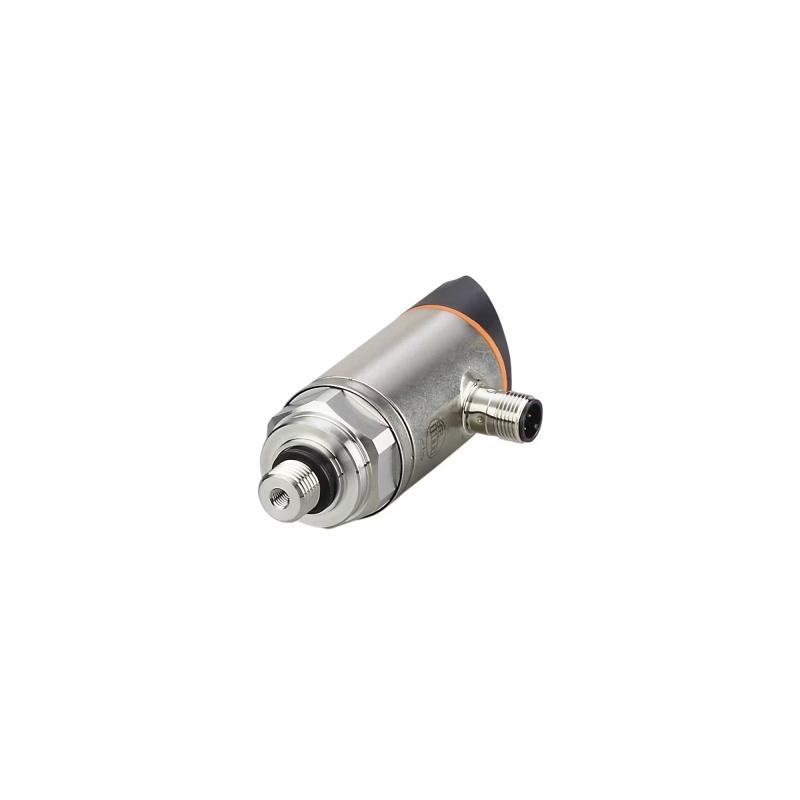

IFM PN2593 (PN-025-REG14-MFRKG/US//V) is a pressure sensor from the PN series, equipped with a display. It features a measuring range of -1 to 25 bar (-14.5 to 362.5 psi / -0.1 to 2.5 MPa) and is designed for measuring relative pressure and vacuum in liquids and gases within industrial environments.
Item NO.:
PN2593Order(MOQ):
1Market Price:
$200Shipping Port:
hkLead Time：
3-5daysWeight：
263.5Product Overview
IFM PN2593 (PN-025-REG14-MFRKG/US//V) is a pressure sensor from the PN series, equipped with a display. It features a measuring range of -1 to 25 bar (-14.5 to 362.5 psi / -0.1 to 2.5 MPa) and is designed for measuring relative pressure and vacuum in liquids and gases within industrial environments.
Key Features
Technical Specifications
| Parameter | Specification |
| Measuring Range | -1…25 bar / -14.5…362.5 psi / -0.1…2.5 MPa |
| Process Connection | G 1/4 male thread (DIN EN ISO 1179-2); M5 female thread |
| Measuring Element | Ceramic capacitive pressure measuring element |
| Electrical Design | PNP/NPN |
| Operating Voltage | 18…30 V DC (SELV/PELV) |
| Current Consumption | < 35 mA |
| Digital Output | 2 channels, configurable as NO (normally open) or NC (normally closed) |
| Analog Output | 1 channel, 4…20 mA / 0…10 V, scalable (1:5 ratio) |
FAQ
Q1: What are the differences between the PN2593 and PN2594, and how should I choose between them?
A: Both are pressure sensors equipped with a display. The primary difference lies in their measuring ranges: the PN2594 covers -1 to 10 bar, while the PN2593 covers -1 to 25 bar. If your system operates at higher pressures, the PN2593 is recommended; if your application only requires coverage of a lower pressure range, the PN2594 is more suitable. It is advisable to allow for an overload margin when selecting a model.
Q2: What are the overload capacity and mounting interface specifications for the PN2593?
A: It has a pressure resistance of 150 bar and a minimum burst pressure of 350 bar. The process connection is a G 1/4 male thread (compliant with DIN EN ISO 1179-2) with an integrated M5 female thread. The process connection is rotatable, which facilitates installation.
Q3: For what types of applications is the PN2593 suitable?
A: It is suitable for use in hydraulic systems, pneumatic systems, water treatment, cooling and lubrication systems, and industrial process control. The permissible medium temperature range is -25 to 80 °C. If you are unsure about your specific operating conditions, please provide details regarding the maximum pressure, the medium, the connection type, and your output requirements, and we will be happy to assist you in selecting the right model.
