Siemens 1XP8024-21 Absolute Multiturn Rotary Encoder, SSI Interface, 10–30 V DC, 8192 Steps/Rev × 4096 Rev, Equivalent to Heidenhain EQN 425 2048
Key Features
Genuine Siemens 1XP8024-21 absolute multiturn rotary encoder
(Siemens ID 1056045-01), with integral bearing and stator coupling for hollow-shaft mounting.
SSI (Synchronous Serial Interface) in Gray code — 13-bit single-turn (8192 steps/rev) × 12-bit multiturn (4096 rev) = 25-bit absolute position; no homing after power-on.
Wide 10–30 V DC supply (28 mA at 24 V); clock frequency up to 1 MHz; calculation time ≤ 5 µs.
Additional HTL incremental square-wave outputs , short-circuit protected (2 signals), for speed/position feedback.
Functionally identical to HEIDENHAIN EQN 425 2048 03S17-E0 (ID 1065029-11) — verified cross-reference, drop-in replacement.
Typical use: SINAMICS / SIMOGEAR motor & drive feedback, CNC feed axes, servo positioning.
Product Description
This original Siemens 1XP8024-21 is an absolute multiturn rotary encoder for precise angular position and speed feedback on servo motors and drives. It reports absolute position directly over the SSI interface (Gray code), so the drive knows its exact position immediately after switch-on without a reference run. With 8192 steps per revolution, 4096 revolutions of multiturn range, a wide 10–30 V DC supply and short-circuit-proof HTL incremental outputs, it is a proven feedback component for Siemens drive systems. Per Siemens documentation, this unit is identical to the HEIDENHAIN EQN 425 2048 03S17-E0 (ID 1065029-11). Please confirm the ordering designation (SSI41H / SSI41T) and mounting version match your machine before ordering.
Specification
| Brand | Siemens (Heidenhain OEM / equivalent) |
| Model | 1XP8024-21 (Siemens ID 1056045-01) |
| Type | Absolute multiturn rotary encoder, blind hollow shaft + stator coupling, integral bearing |
| Interface | SSI, Gray code |
| Ordering designation | SSI41H / SSI41T |
| Positions per revolution | 8192 (13 bit) |
| Equivalent | HEIDENHAIN EQN 425 2048 03S17-E0, ID 1065029-11 |
Package Includes

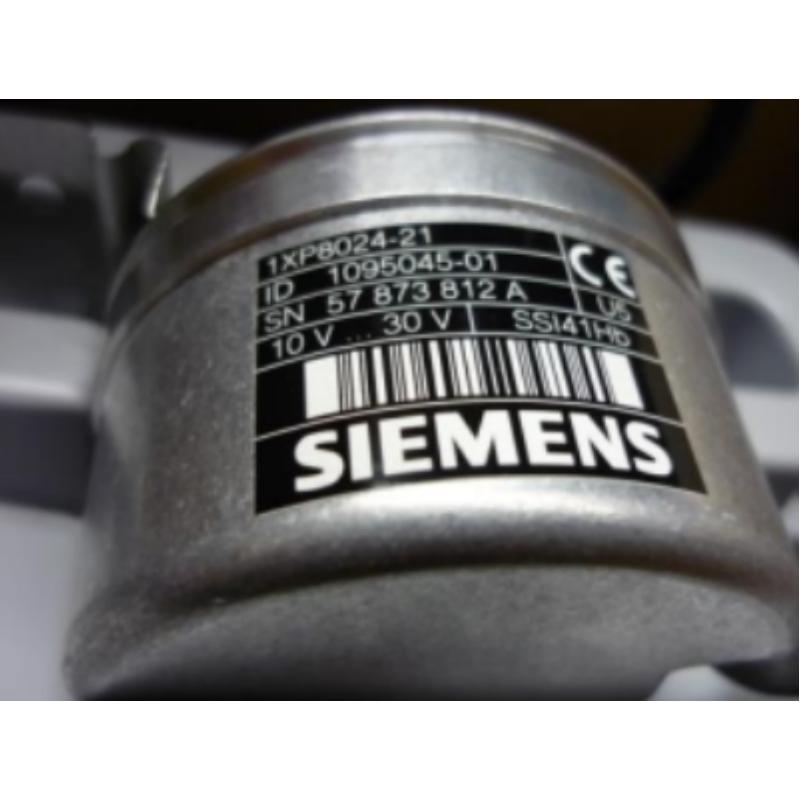

1 × Siemens 1XP8024-21 absolute encoder (as pictured). Mounting hardware / cable / coupling not included unless stated.
