Original SSI encoder,SSI encoder In Stock

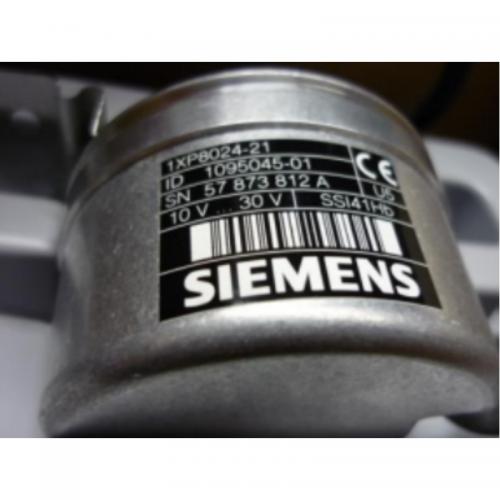

Siemens 1XP8024-21 SSI Absolute Multiturn Encoder (ID 1056045-01) | EQN 425 2048 Equivalent

Overview Siemens 1XP8024-21 Absolute Multiturn Rotary Encoder, SSI Interface, 10–30 V DC, 8192 Steps/Rev × 4096 Rev, Equivalent to Heidenhain EQN 425 2048 Key Features Genuine Siemens 1XP8024-21 absolute multiturn rotary encoder (Siemens ID 1056045-01), with integral bearing and stator coupling for hollow-shaft mounting. SSI (Synchronous Serial Interface) in Gray code — 13-bit single-turn (8192 steps/rev) × 12-bit multiturn (4096 rev) = 25-bit absolute position; no homing after power-on. Wide 10–30 V DC supply (28 mA at 24 V); clock frequency up to 1 MHz; calculation time ≤ 5 µs. Additional HTL incremental square-wave outputs , short-circuit protected (2 signals), for speed/position feedback. Functionally identical to HEIDENHAIN EQN 425 2048 03S17-E0 (ID 1065029-11) — verified cross-reference, drop-in replacement. Typical use: SINAMICS / SIMOGEAR motor & drive feedback, CNC feed axes, servo positioning. Product Description This original Siemens 1XP8024-21 is an absolute multiturn rotary encoder for precise angular position and speed feedback on servo motors and drives. It reports absolute position directly over the SSI interface (Gray code), so the drive knows its exact position immediately after switch-on without a reference run. With 8192 steps per revolution, 4096 revolutions of multiturn range, a wide 10–30 V DC supply and short-circuit-proof HTL incremental outputs, it is a proven feedback component for Siemens drive systems. Per Siemens documentation, this unit is identical to the HEIDENHAIN EQN 425 2048 03S17-E0 (ID 1065029-11). Please confirm the ordering designation (SSI41H / SSI41T) and mounting version match your machine before ordering. Specification Brand Siemens (Heidenhain OEM / equivalent) Model 1XP8024-21 (Siemens ID 1056045-01) Type Absolute multiturn rotary encoder, blind hollow shaft + stator coupling, integral bearing Interface SSI, Gray code Ordering designation SSI41H / SSI41T Positions per revolution 8192 (13 bit) Equivalent HEIDENHAIN EQN 425 2048 03S17-E0, ID 1065029-11 Package Includes 1 × Siemens 1XP8024-21 absolute encoder (as pictured). Mounting hardware / cable / coupling not included unless stated. Recommended Product Siemens 1XP8024-10 Same 1XP8024 SSI absolute multiturn encoder family — 8192 steps/rev × 4096 rev, 10–30 V DC, Gray code. If your machine calls for the 1XP8024-10 version, we also stock it.

Hot Tags : siemens encoder 1XP8024-21 heidenhain encoder SSI encoder rotary encoder SSI absolute multiturn encoder 8192 steps encoder
Read More
Allen Bradley 1734-SSI Encoder Module

Overview 1734-SSI Encoder Module Brand Name Allen Bradley Item Name 1734-SSI Package Carton Package Payment TT/Western Union Warranty 1 Year Lead Time 3-5 Days The POINT I/O family is the key to successful control system design and operation with its modular I/O for flexible and low-cost applications, and as a key member of Rockwell's integrated automation architecture, its comprehensive diagnostic capabilities and configurable features enable the product to be applied to any automation system and reduce engineering costs through standardized design. It can be used as a remote device panel, a local control panel, and can be accessed from any location, even via the Internet: the product is fully adapted to the needs of the user, with a density of 1 to 8 points. It can reduce the cost and size of the system. Main Components ♠I/O Modules provide interface circuits for the field and the system. ♠Communication Interface Modules provide network interface circuits. ♠Terminal Block Unit The signal terminal and power supply on the field side are wired and provide system power to the Kenboard. ♠The Power Distribution Module provides the scalability of POINT I/O and the flexibility to mix a wide range of different signal types. About Us SWAN ELECTRIC CO., LIMITED is a supplier of industrial automation spare parts located in China. We have many brands to choose, such as Allen-Bradley,Bently Nevada,ABB,GE,Emerson,Schneider,Siemens,Honeywell,Yokogawa, etc,no matter what you need, you can find them here. Welcome to call or email for inquiries. We are willing to work with you to maintain the normal production of the factory. Packing & Delivery All the goods will be inspected or tested before shipment. Packing in professional anti-static bag;And foam cushioning materials will be use. We use DHL,FEDEX,TNT,UPS,EMS to delivery goods By air or by sea.The most economic shipping way will be given to you.

Hot Tags : Allen Bradley 1734-SSI Encoder Module Allen Bradley 1734-SSI PLC 1734-SSI 1734 POINT I/O 1734-SSI new in stock 1734-SSI new and original Allen Bradley 1734-SSI PLC MODULE
Read More
